Drawing-based 3D study
Large operating theatre project
A floor-wide study of operating rooms and their clean, support and staff spaces.
Project brief
Large operating theatre project
A hospital-floor plan brings five operating rooms together with the preparation, supply and staff spaces needed around them.
Planning focus
Coordinate the operating rooms, clean and soiled circulation, and the supporting spaces across one floor.
Spaces included
- Five operating rooms and their access routes
- Nursing, instrument preparation and sterile storage
- Changing, staff support and patient transfer spaces

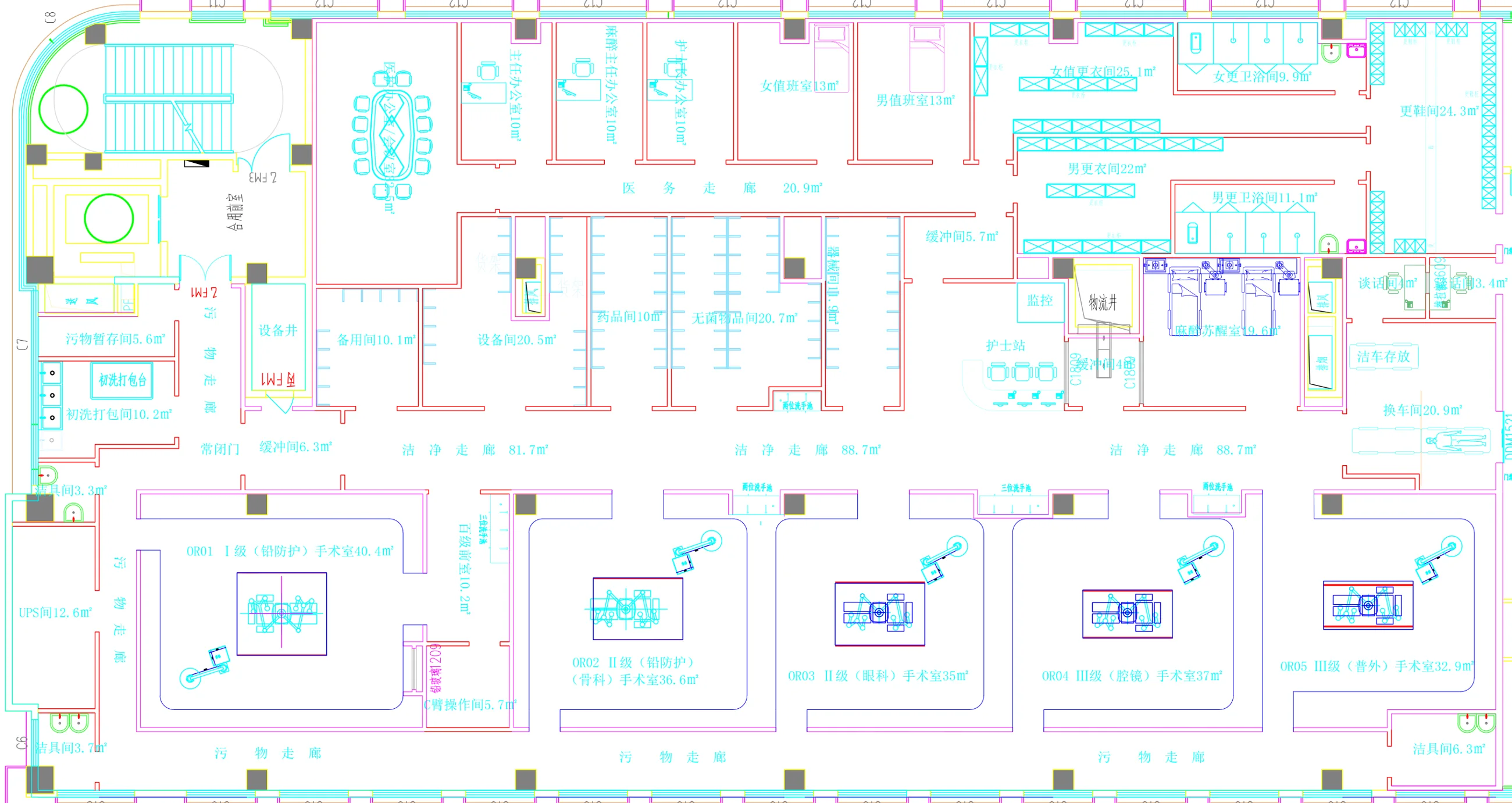

Explore the supplied plan and the spatial model below to compare room relationships, circulation and equipment positions.
View the full plan
What this study helps you explore
Use the plan and interactive model to examine room relationships, circulation, equipment placement and the supporting spaces around the clinical service. Open a room, select equipment and compare the model with the supplied plan.
This is a design visualization based on supplied project information. Some dimensions, materials, heights and equipment shapes are design assumptions. It does not establish construction completion or site-measured conditions.
