Receiving and decontamination
Provide a defined route for used instruments, sorting, washing and the cleaning equipment required by the device mix.
HomeHospital Projects
Hospital Projects
Sterile Supply Centres
Organize the receiving, cleaning, packing, sterilization and sterile-supply pathway.
Start from the service your team needs to deliver.
A sterile supply centre supports a hospital’s procedures through a connected instrument-reprocessing pathway. Receiving used devices, cleaning, inspection, packing, sterilization, storage and dispatch need to be considered together with workload and staffing.
Our work combines functional planning, equipment configuration and specialist engineering coordination. The supplied sterile supply centre project plan and 3D study help show how the different zones can be organized around the reprocessing sequence.
Plan the spaces as one working system.
Inspection, assembly and packing
Coordinate work surfaces, inspection, drying, packaging, traceability and transfer to sterilization.
Sterilization, storage and dispatch
Connect the selected sterilization processes with cooling, storage, stock rotation and delivery to clinical services.
Engineering and room interfaces
- Water, drainage, power and equipment utility requirements
- Functional separation, ventilation and materials movement
- Installation, process qualification and maintenance coordination
Equipment around the clinical brief
- Cleaning and disinfection equipment appropriate to the devices
- Inspection, packing and sealing workstations
- Sterilization, storage and transport equipment
Explore the supplied project material

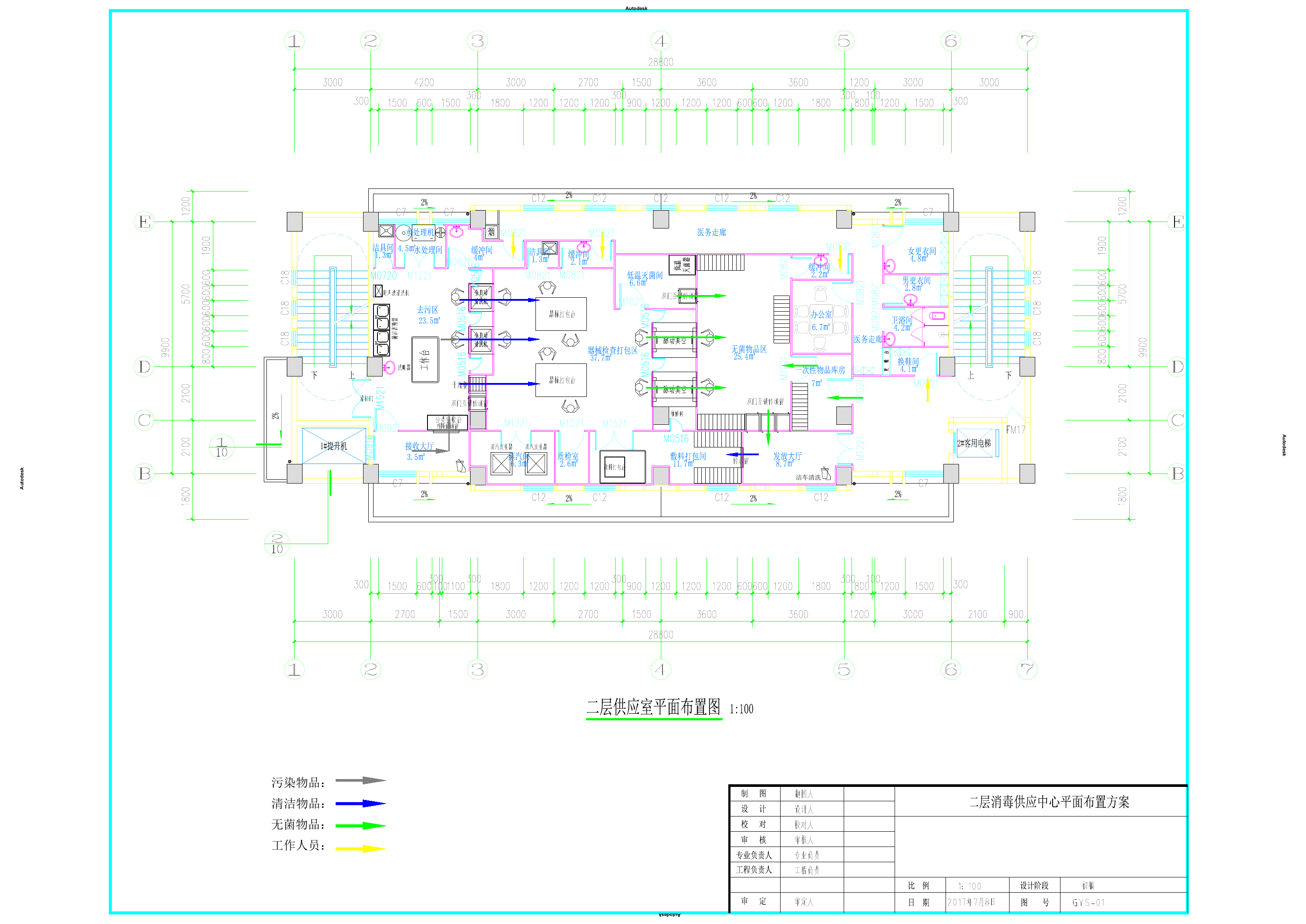

A closer look at the spatial plan.

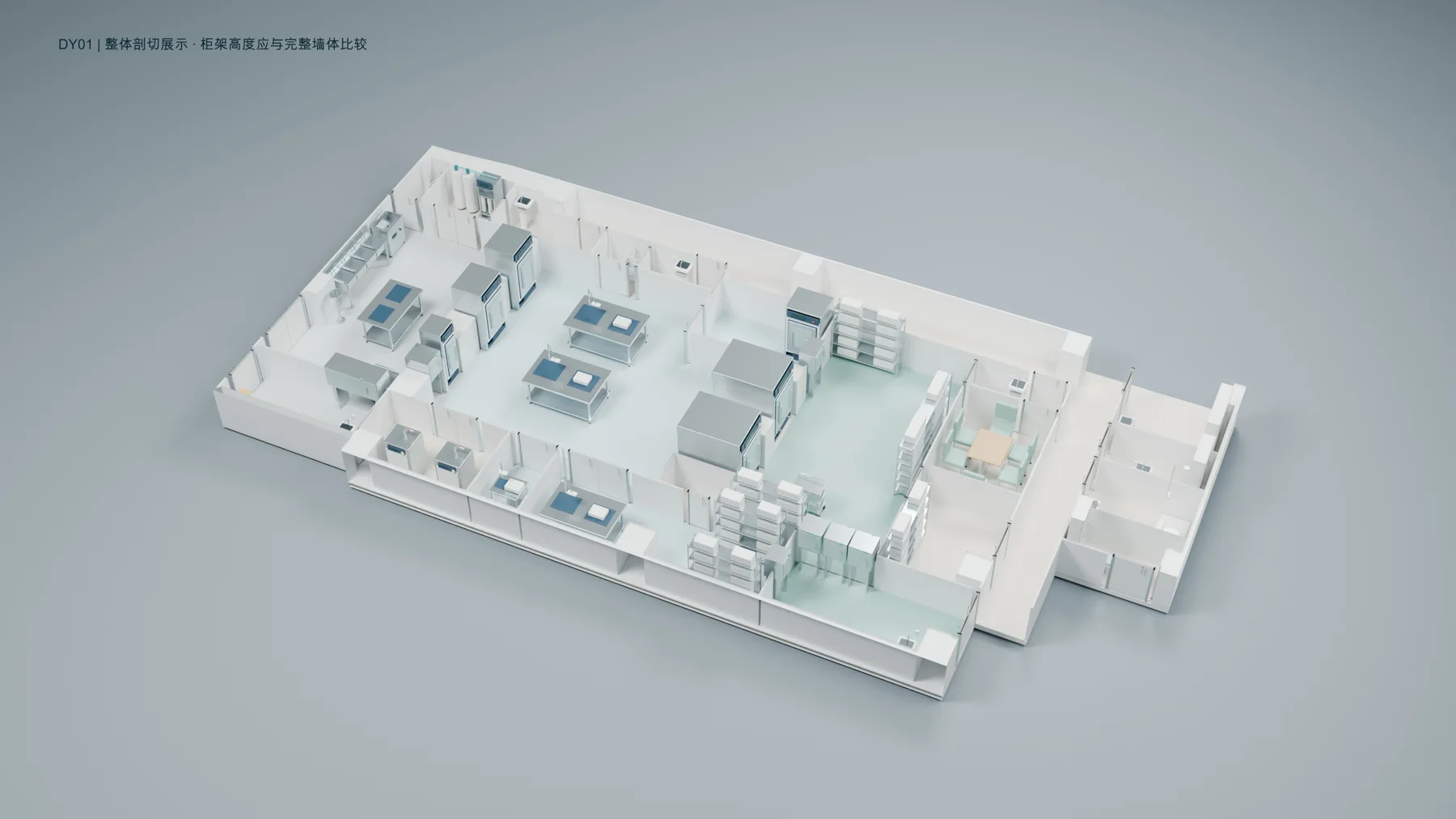

Drawing-based 3D study
Sterile supply centre project
A supplied project plan explored through decontamination, packing, sterilization and sterile storage.
View the full plan
Explore the spaces and equipment15.2 MB · The model loads when you open it.
Spatial visualization based on the supplied design material. Generic equipment and design assumptions are illustrated; the study is not a construction or as-built record.
How the project moves forward
01
Site information
Review the supplied plan, existing services, utilities and project brief.
02
Coordinated design
Resolve specialist engineering and equipment interfaces with the project team.
03
Budget and phases
Align investment priorities, equipment choices and the implementation sequence.
04
Equipment installation
Connect supplier delivery with room readiness and installation responsibilities.
05
Training and continued support
Prepare local teams and plan maintenance, supplies and future development.
Prepare a first discussion
Bring the information you already have.
- Clinical services served and daily instrument workload
- Device types, existing methods and shared resources
- Floor plan and available equipment utility information
A reprocessing-centre brief, zone and flow plan, coordinated equipment requirements and an implementation path that includes staff preparation and handover.
Project questions
Can different instruments use the same reprocessing process?
Not automatically. Planning starts with the device mix and manufacturers’ instructions so that cleaning, disinfection and sterilization resources match the devices the hospital actually uses.
A clear next step for your hospital.
Tell us what you want to build, improve or source. A short outline is enough to start.
